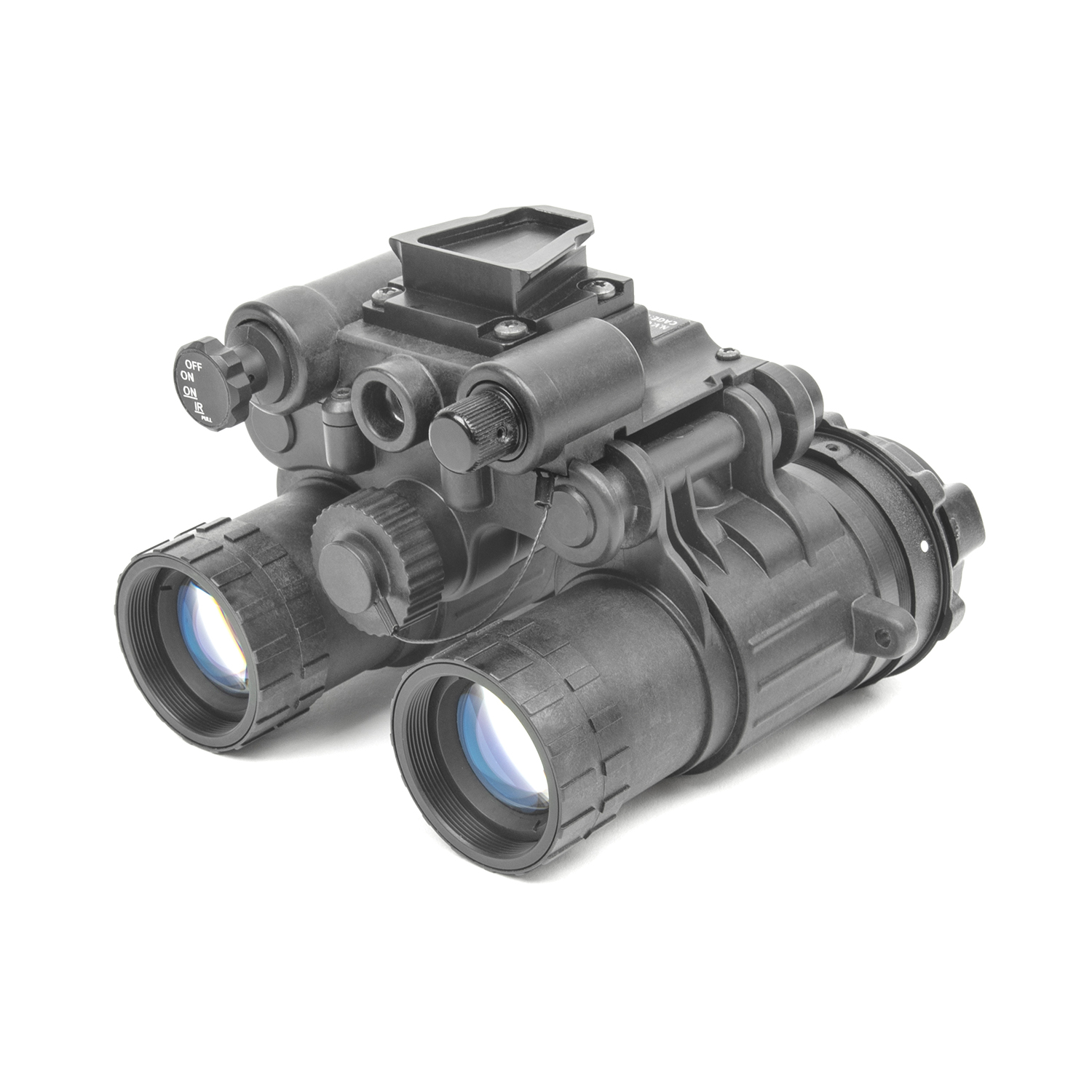

BNVD-SG Night Vision Binocular – Single Gain

$5,395.00$9,595.00

Clear
$0.00
$0.00
  • Options Price: $0.00
  • Product Price: $5,395.00
  • Total: $0.00

Please take note of the lead time for your system selection. Your card will be charged immediately upon order processing.

*Orders are processed in the order they are received unless they fall under Title 1 of the Defense Production Act (DPA) of 1950. In this event NVD shall make its best effort to advise of any delay in delivery.

SKU: NVD-BNVD-SG Categories: , Tag:

The NVD-BNVD-SG Binocular is a dual tube goggle with gain control. The BNVD-SG operates with a single gain control knob that controls both eyepieces simultaneously. Depending upon the amount of ambient light, the user can adjust the tube brightness (gain) lower to compensate for overly bright conditions or to increase the gain under extreme dark conditions. The BNVD-SG can be used as a monocular by choosing which side you want to use as your night vision eye and rotate the other side/arm of the binocular up and out of the way. This enhanced capability allows the user to rotate either monocular channel away from their eye while leaving the other monocular channel in place. This provides the operational flexibility to use the BNVD-SG as either a dual-eye or single-eye device. When used as a monocular, the user can operate the BNVD-SG with weapon mounted sighting equipment without sacrificing night-time situational awareness. Best of all with all the added features, the BNVD-SG is still substantially lighter than the AN/PVS-7 single tube goggle!

NVD-BNVD-SG now features a “Tactical Monocular Cutoff”, which turns off power to each channel of the binocular whenever a channel is rotated up out of the users’ line of sight. This eliminates stray light emitting from the monocular eyepiece, which would reveal the user to anyone else on the battlefield. The BNVD-SG has an automatic system power cutoff whenever the BNVD-SG is flipped up into the helmet mounted stow position, and then powers back on when it is flipped back down. This feature can also be turned off via a four position ON/OFF switch. The BNVD-SG is submersible to 66 feet (20 meters) for up to 3 hours. The BNVD-SG is available with an optional battery pack, which holds 3 “AA” Alkaline batteries for run times exceeding 50 hours.

The BNVD-SG can be used with optional 3X Afocal Magnifiers. Each 3X Magnifier can be either slide onto each objective lens or screw into the threads on the objective lenses. For extended use, it is recommended to screw them on to prevent the lenses from falling off. These magnifiers transform the BNVD-SG into a fixed 3X Magnification Binocular.

The optional external battery pack will only work with our Night Vision Devices manufactured binoculars with an external power port in order to extend the operating life of the system. If you would like to use this battery pack with this system, you must add the power port now when first assembled. The body cannot be modified afterwards. You may however, add the battery port now and purchase the battery pack at a later time.

With our expansive capabilities and strategic partnerships, we are able to custom build any of our NVD manufactured products with Image Intensifiers from either Elbit Systems of America®, Photonis® or L3Harris®. This includes green and white phosphor and thin or un-filmed image tubes. This system complies with MIL-STD 810G, MIL-PRF-A3256342A(CR) and MIL-PREF-49427(CR).

Accessories

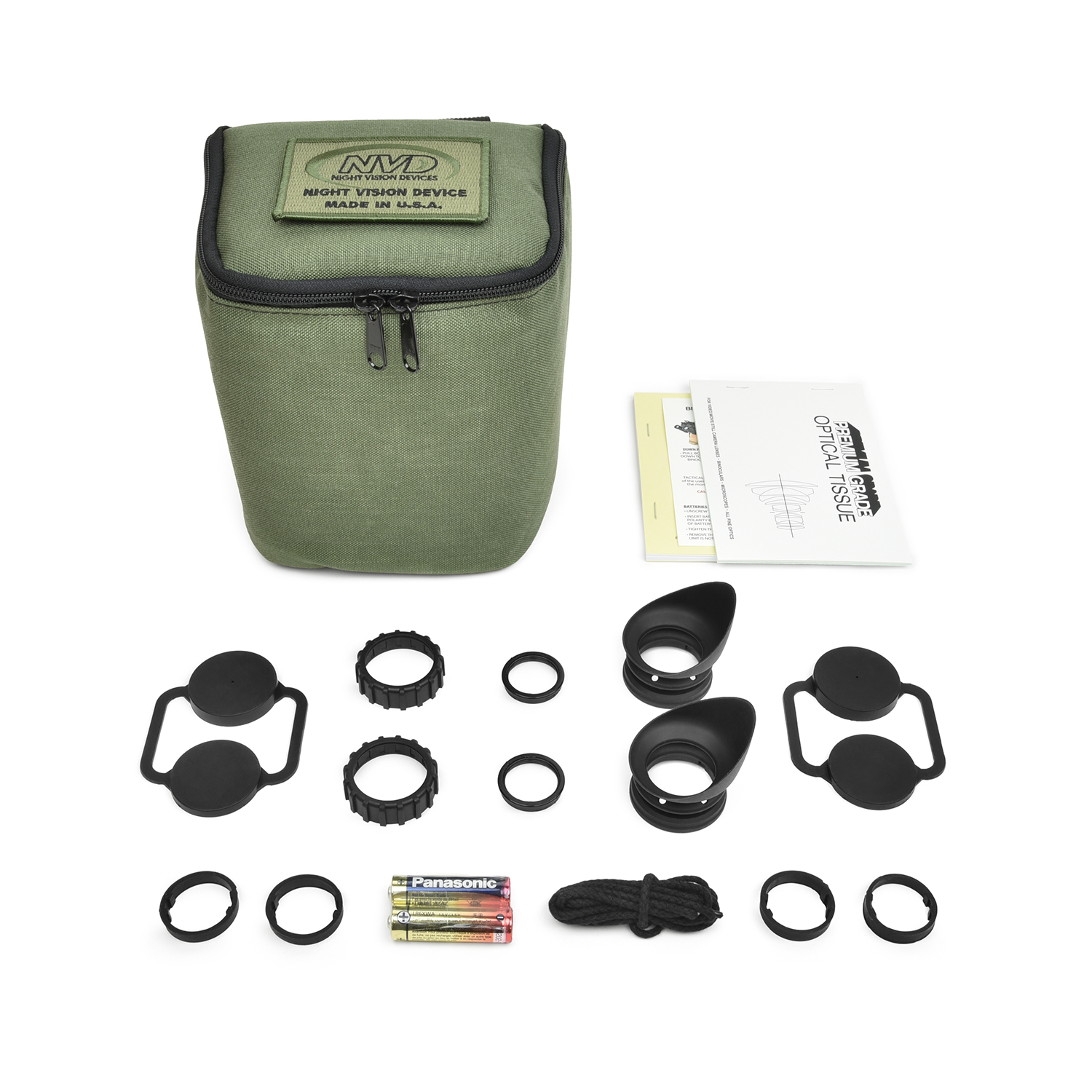

Standard Accessories: Soft Carry Case, AA Batteries (2), Operator's Manual, Neckcord, Retaining Lens Covers, Eyecups, Lens Tissue, Demist Shields, Sacrificial Windows, IR Flood/Spot Lens Assembly, Operator's Card, and Dovetail Mounting Adapter.

Optional Accessories: Hard Case, 3X Afocal Magnifier Lens, Helmet Mount, Shuttered Eyeguards, Camera Adapter Kit, Light Interference Filters (For DOD Only), and Battery pack for 50-60 hours of continual use for extended missions.

Specifications

Warranty 10 Years
Gain Control Manual
IR Illuminator
Adjustable IR Spot/Flood/td>

LED IR Indicator
LED Low Battery Indicator
Tactical Monocular Cutoff
Flip Up, Turn Off
Field of View 40°
Magnification One Power (1X)
Diopter Adjustment -6 to +2 Diopters
Interpupillary Adjustment 51mm to 76mm
Eye Relief 25mm
Submersible 66 feet
Focus Range 9.8" to Infinity
Power Source 1 AA-Size Battery
Operation Time 40+ hours with Lithium AA battery
Weight (w/o batteries) 560 g (19.8 oz)
Size 4.3"L x 4.2"W x 3.3"H

Additional information

Features

Gain Control, Knob Controls

Specifications subject to change without notice. All night vision products and accessories are controlled under export laws with guidance from International Traffic in Arms (ITAR). By purchasing equipment from Night Vision Devices, you understand that these products cannot leave the country without a valid US Dept of State License.
