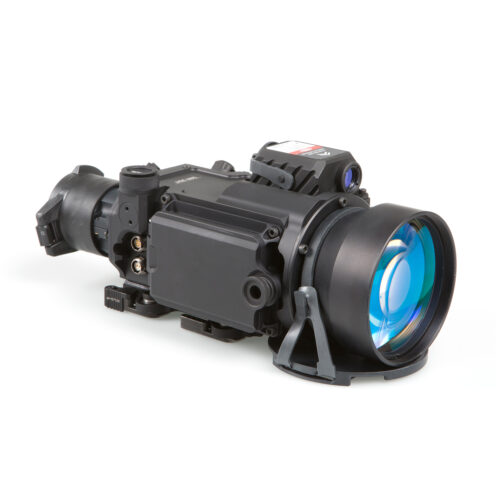

Brolis Sight S100U SWIR Weapon Sight

Call for price

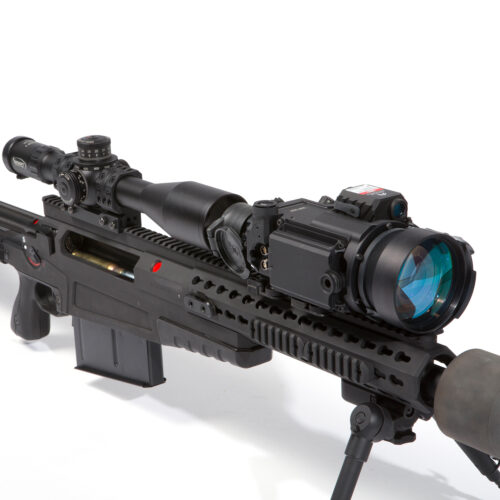

The BROLIS Sight S100U is rugged long-range SWIR weapon sight providing clear day/night imagery through various obscurants like dust, smoke, haze, fog and many others. The S100U incorporates in itself the latest laser diode technology providing complete covertness to conventional night vision technology. While S100U is fully capable of passive night vision it also has integrated powerful laser illuminator with motorized beam divergence control for total darkness conditions or illumination through windows. The BROLIS S100U is designed to interface with day scopes and is equipped with auto focus for easier control. Integrated micro-SD card slot allows the operator to record and store data. The S100U withstand recoils up to .50 Cal, has full metal aluminum alloy and is protected by superior wear and corrosion resistant, chemically stable coating. The S100U works with Daysights up to 15X magnification and comes with a one year warranty.

Accessories

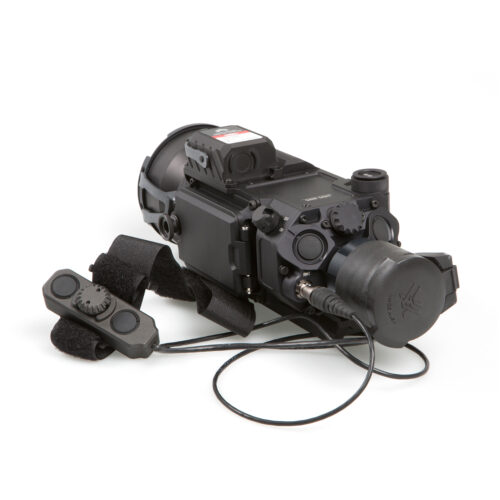

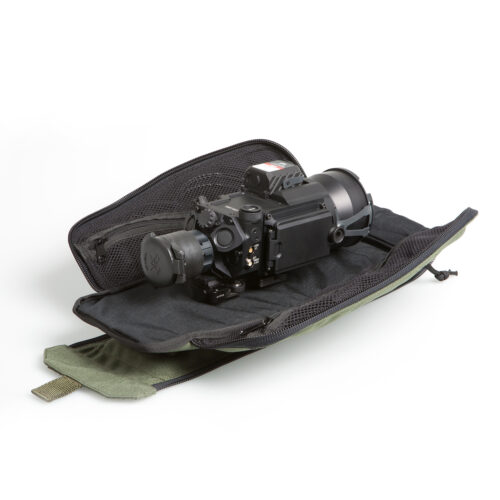

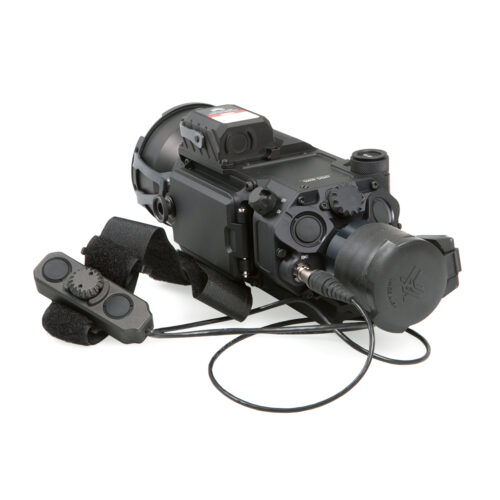

Standard Accessories: Set of CR123A batteries, External power cable, Kill flash filter, Video output cable, Operator’s manual, Locking lever adjustment wrench, Microfiber cloth, Remote control pad, Sun guard, Lens cleaning tool, MicroSD to SD adapter, Soft pouch, and Elastic straps for caps.

Specifications

OPTICAL PROPERTIES
OPTICAL PROPERTIES
Camera
Camera
Sensor
640 x 512 px InGaAs
Wavelength range
600 - 1700 nm
Spectral range
VIS-NIR-SWIR
Focal length
100 mm
Field of View
5.5 ° (H) x 4.4° (V)
Digital Zoom
1x, 2x, 4x
F-Number
1.5
Focus
Auto Focus
Magnification
Unity
Human target detection / recognition (km)
3.8 / 1.2 km
NATO target detection / recognition (km)
5.1 / 1.6 km
Integrated laser diode module
Integrated laser diode module
Wavelength
1550 nm
Maximum optical power
Adjustable up to 1.5 W
Beam divergence
Adj. from 10 - 30 mrad to > 70 mrad
Bore-sight
Adjustable vertical and horizontal laser boresigth over full FOV of camera
Laser safety class (IEC 60825-1:2014)
4
NOHD
61 m
Safety
Interlock plug
Working distance
Up to 3 km
ELECTRICAL PROPERTIES
ELECTRICAL PROPERTIES
External power supply
12-24 VDC
Internal power supply
8 x CR123A batteries
MECHANICAL PROPERTIES
MECHANICAL PROPERTIES
Length, width, height (max)
aprox. 260 x 110 x 120 mm
Weight (without batteries)
<2,3 kg
Mounting interface
MIL-STD-1913 Rail ( Picatinny Rail)
Connectors
PAL video output, external power supply,remote control; micro SD slot
ENVIRONMENTAL PROPERTIES
ENVIRONMENTAL PROPERTIES
Operational temperature
-35 °C to +50 °C
Storage temperature
-40 °C to +60 °C
IP Rating
Manufactured to IP68 (immersion 1m 2 h)

Specifications subject to change without notice. All night vision products and accessories are controlled under export laws with guidance from International Traffic in Arms (ITAR). By purchasing equipment from Night Vision Devices, you understand that these products cannot leave the country without a valid US Dept of State License.
