BNVD Night Vision Binocular – No Gain

Call for price

Please take note of the lead time for your system selection. Your card will be charged immediately upon order processing.

*Orders are processed in the order they are received unless they fall under Title 1 of the Defense Production Act (DPA) of 1950. In this event NVD shall make its best effort to advise of any delay in delivery.

SKU: NVD-BNVD Categories: , Tag:

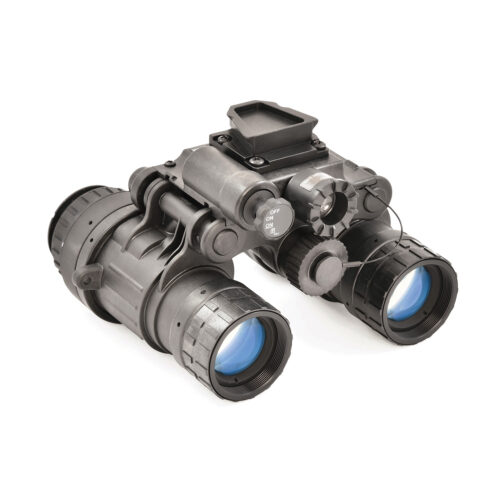

The NVD-BNVD Binocular is a dual tube night vision goggle with outstanding depth perception and supportability at an affordable price. Never before could you utilize the depth perception of a collimated dual tube goggle and the convenience of a monocular in one system without switching equipment.

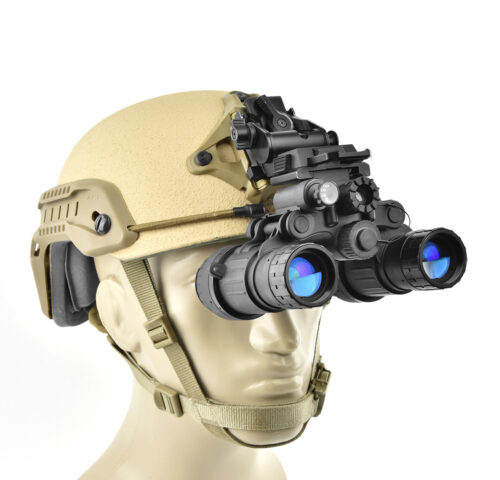

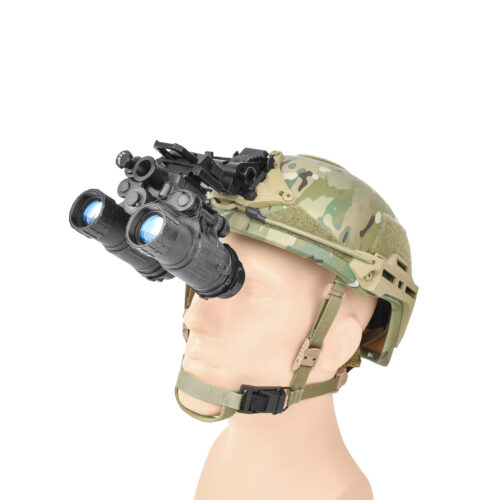

The BNVD is lightweight and can be worn comfortably for extended periods of time. When not in use and rotated upright it should not interfere with anything above the user’s head. This reduces risk of damage to the goggle and mount from rapid vehicle exits. With this flexibility there are endless possibilities and combinations.

The NVD-BNVD now features a “Tactical Monocular Cutoff”, which turns off power to each channel of the binocular whenever a channel is rotated up out of the users’ line of sight. This eliminates stray light emitting from the monocular eyepiece, which would reveal the user to anyone else on the battlefield. The BNVD has an automatic system power cutoff whenever the BNVD is flipped up into the helmet mounted stow position, and then powers back on when it is flipped back down. This feature can also be turned off via a four position ON/OFF switch. The BNVD is submersible to 66 feet (20 meters) for up to 3 hours. The BNVD is available with an optional battery pack, which holds 3 “AA” Alkaline batteries for run times exceeding 50 hours.

The BNVD can be used with optional 3X Afocal Magnifiers. Each 3X Magnifier can be either slide onto each objective lens or screw into the threads on the objective lenses. For extended use, it is recommended to screw them on to prevent the lenses from falling off. These magnifiers transform the BNVD into a fixed 3X Magnification Binocular.

The optional external battery pack will only work with our Night Vision Devices manufactured binoculars with an external power port in order to extend the operating life of the system. If you would like to use this battery pack with this system, you must add the power port now when first assembled. The body cannot be modified afterwards. You may however, add the battery port now and purchase the battery pack at a later time.

With our expansive capabilities and strategic partnerships, we are able to custom build any of our NVD manufactured products with Image Intensifiers from either Elbit Systems of America®, Photonis® or L3Harris®. This includes green and white phosphor and thin or un-filmed image tubes. This system complies with MIL-STD 810G, MIL-PRF-A3256342A(CR) and MIL-PREF-49427(CR).

Accessories

Standard Accessories: Soft Carry Case, AA Batteries (2), Operator's Manual, Neckcord, Retaining Lens Covers, Eyecups, Lens Paper, Demist Shields, Sacrificial Windows, IR Flood/Spot Lens Assembly, Operator's Card and Dovetail Mounting Adapter.

Optional Accessories: 3X Afocal Magnifier Lens, Helmet Mount, Shuttered Eyeguards, Camera Adapter Kit, Light Interference Filters (For DOD Only), and Battery pack for 50-60 hours of continual use for extended missions.

Specifications

Warranty 10 Years
Field of View 40°
Magnification One Power (1X)
Diopter Adjustment -6 to +2 Diopters
Interpupillary Adjustment 51mm to 76mm
Eye Relief 25mm
Submersible 66 feet
Focus Range 9.8" to Infinity
Power Source 1 AA-Size Battery
Operation Time 40+ hours with Lithium AA battery
Weight (w/o batteries) 545 g (19.2 oz)
Size 4.3"L x 4.2"W x 3.3"H

Specifications subject to change without notice. All night vision products and accessories are controlled under export laws with guidance from International Traffic in Arms (ITAR). By purchasing equipment from Night Vision Devices, you understand that these products cannot leave the country without a valid US Dept of State License.
