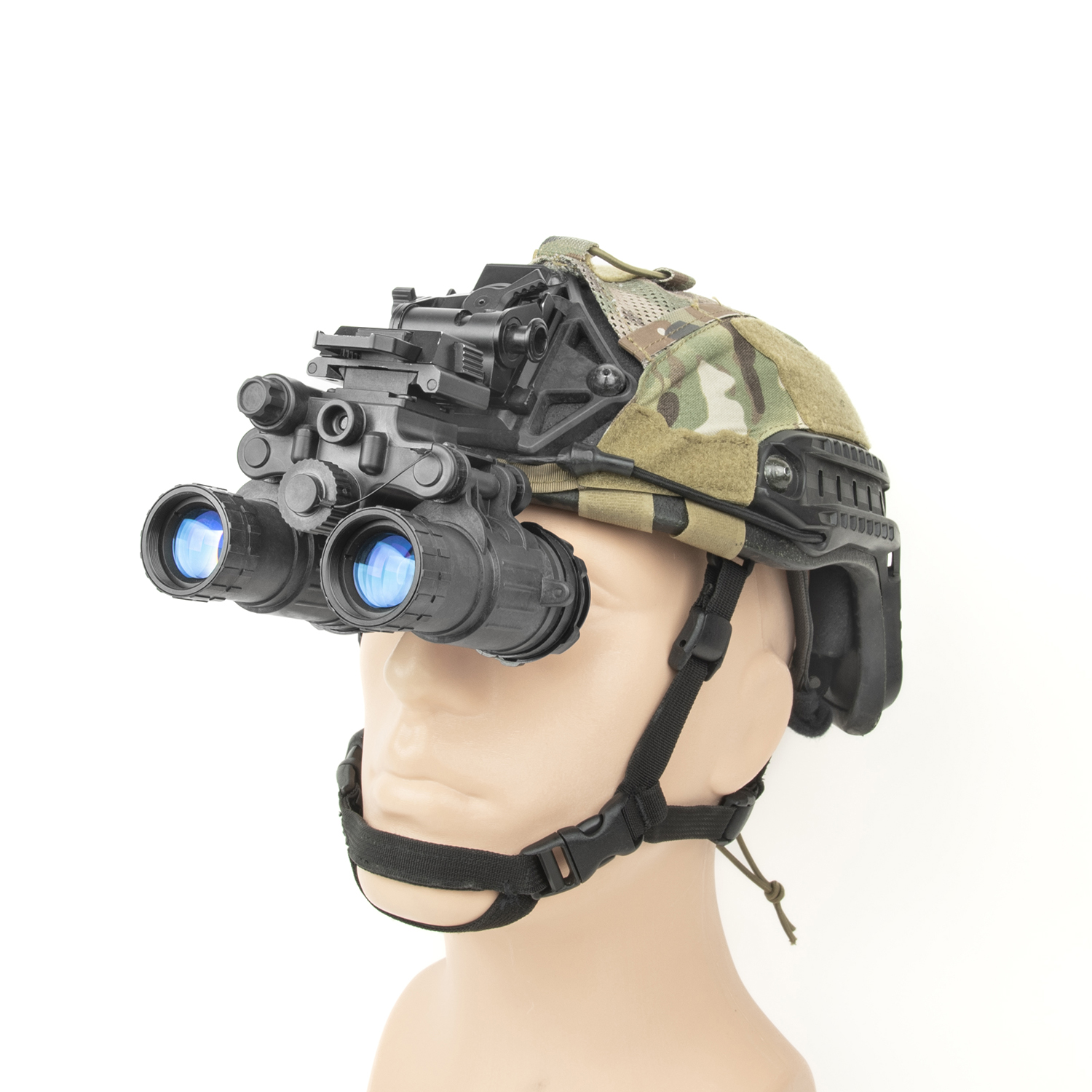

BNVD-SGC Night Vision Binocular – Single Gain Control

$6,095.00$8,295.00

Please take note of the lead time for your system selection. Your card will be charged immediately upon order processing.

*Orders are processed in the order they are received unless they fall under Title 1 of the Defense Production Act (DPA) of 1950. In this event NVD shall make its best effort to advise of any delay in delivery.

SKU: BNVD-SGC Categories: , Tags: ,

The next generation Binocular Night Vision Device – Single Gain Control, is the culmination of improvements to the rugged and proven BNVD-SG system. Utilizing feedback from thousands of end-users, the BNVD-SGC introduces a new rotary control switch. The single switch controls system power, gain, and auxiliary functions, providing intuitive control with a substantially lower weight. The BNVD-SGC also includes an improved Diopter Adjustment Assembly with reduced backlash, tighter feel, and improved strength. The IR Spot Flood Assembly has been upgraded to provide a wider Flood setting, filling the entire field of view, as well as a more concentrated Spot setting to illuminate hallways and caves void of light. The BNVD-SGC comes standard with Lightweight Sacrificial Windows which can be threaded into the Objective Lenses to provide protection while still allowing the use of the Lens Covers. Like its predecessor, the BNVD-SGC features diopter focus from +2 to -6 diopters, a close focus of 9.8 inches (25 cm), and fully meets the latest release of MIL-STD-810H including 66-foot immersion.

The BNVD-SGC features a “Tactical Monocular Cutoff”, which turns off power to each channel of the binocular whenever a channel is rotated up out of the users’ line of sight. This eliminates stray light emitting from the monocular eyepiece, which would reveal the user to anyone else on the battlefield.

The BNVD-SGC can be used with optional 3X Afocal Magnifiers. Each 3X Magnifier can be either slide onto each objective lens or screw into the threads on the objective lenses. For extended use, it is recommended to screw them on to prevent the lenses from falling off. These magnifiers transform the BNVD-SGC into a fixed 3X Magnification Binocular.

The optional external battery pack will only work with our Night Vision Devices manufactured binoculars with an external power port in order to extend the operating life of the system. If you would like to use this battery pack with this system, you must add the power port now when first assembled. The body cannot be modified afterwards. You may however, add the battery port now and purchase the battery pack at a later time.

The BNVD-SGC has been rigorously tested for US Military and DoD EMI compliance by an independent, Gov’t support facility, and qualified for conformance to MIL-STD-461G, RE102, RS101 and RS103. This means that BNVD-SGC has an extremely low electronic emission signature, making it nearly impossible to detect its use, even in close quarters. The BNVD-SGC was also shown to not be damaged nor suffer performance degradation when exposed to very high electrical field strengths, over a broad frequency range, as measures of electromagnetic susceptibility. These proven factors make the BNVD-SGC robust under the harshest of EMI conditions.

With our expansive capabilities and strategic partnerships, we are able to custom build any of our NVD manufactured products with Image Intensifiers from either Elbit Systems of America®, Photonis® or L3Harris®. This includes green and white phosphor and thin or un-filmed image tubes. Night Vision Devices specializes in Gen 3 Night Vision technology and can also provide systems equipped with Gen 2 image intensifiers to meet individual customer requirements. We also offer Cerakote color customization for bulk orders. This system complies with MIL-STD 810G, MIL-PRF-A3256342A(CR) and MIL-PREF-49427(CR).

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Accessories

Standard Accessories: Soft Carry Case, AA Batteries (2), Operator’s Manual, Neckcord, Retaining Lens Covers, Eyecups, Lens Tissue, Demist Shields, Light Weight Sacrificial Windows, IR Flood/Spot Lens Assembly, Operator’s Card, and Dovetail Mounting Adapter

Optional Accessories: Hard Case, 3X Afocal Magnifier Lens, Helmet Mount, Shuttered Eyeguards, Camera Adapter Kit, Light Interference Filters (For DOD Only), and Battery pack for 50-60 hours of continual use for extended missions.

Specifications

Warranty
10 Years
Generation
Gen 3 and Gen 2 options available
Gain Control
Manual
IR Illuminator
Yes
Adjustable IR Spot/Flood
Yes
LED IR Indicator
Yes
LED Low Battery Indicator
Yes
Tactical Monocular Cutoff
Yes
Flip Up, Turn Off Setting
Yes
Field of View
40°
Magnification
One Power (1X)
Diopter Adjustment
-6 to +2 Diopters
Interpupillary Adjustment
51mm to 76mm
Eye Relief
25mm
Submersible
66 feet for 2 hours
Focus Range
9.8" to Infinity
Power Source
1 AA-Size Battery
Operation Time
25+ hours
Size
4.3"L x 4.2"W x 3.3"H
Weight (w/o batteries)
520 g (18.3 oz)*
*Product weights may vary due to manufacturing and configuration processes.

Specifications subject to change without notice. All night vision products and accessories are controlled under export laws with guidance from International Traffic in Arms (ITAR). By purchasing equipment from Night Vision Devices, you understand that these products cannot leave the country without a valid US Dept of State License.
