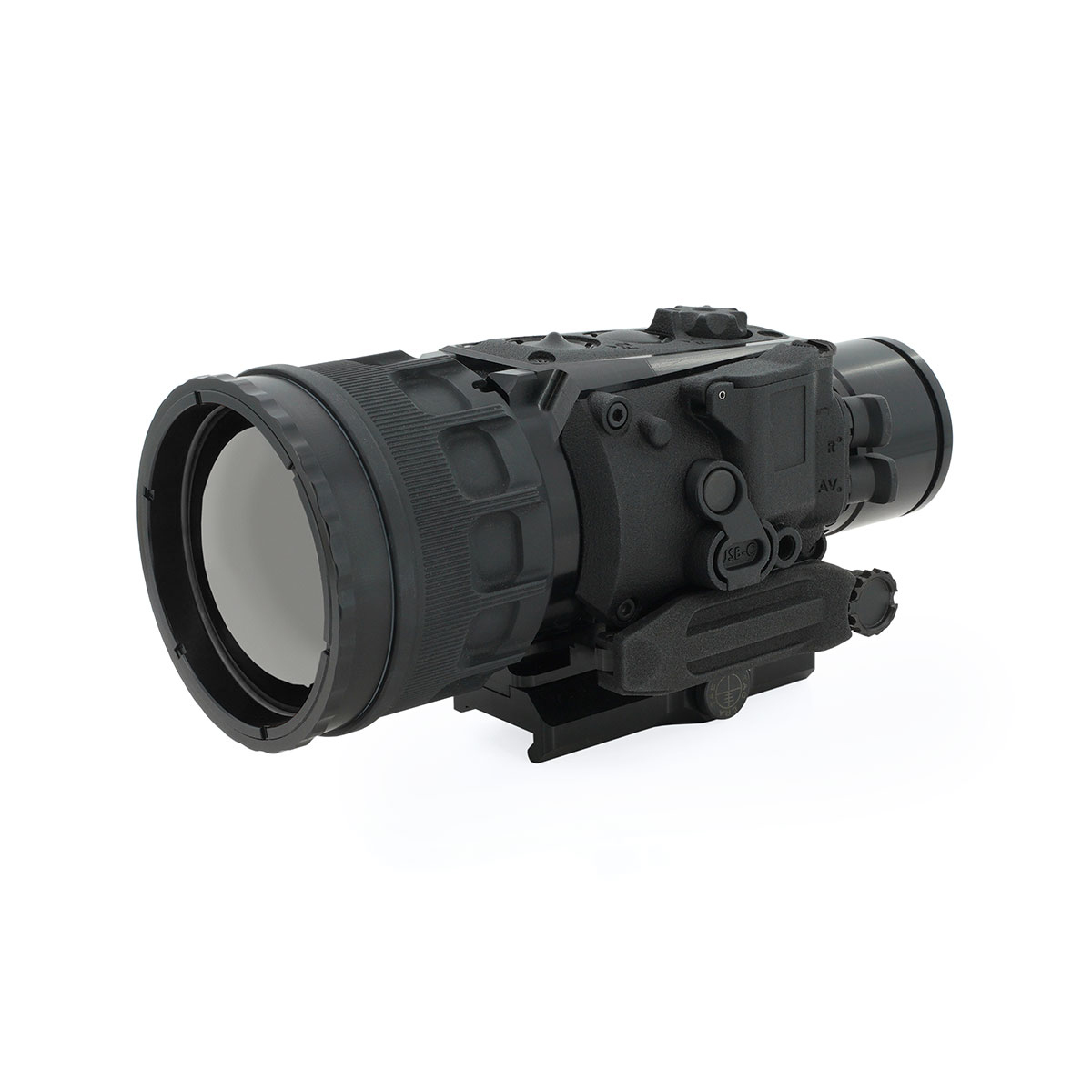

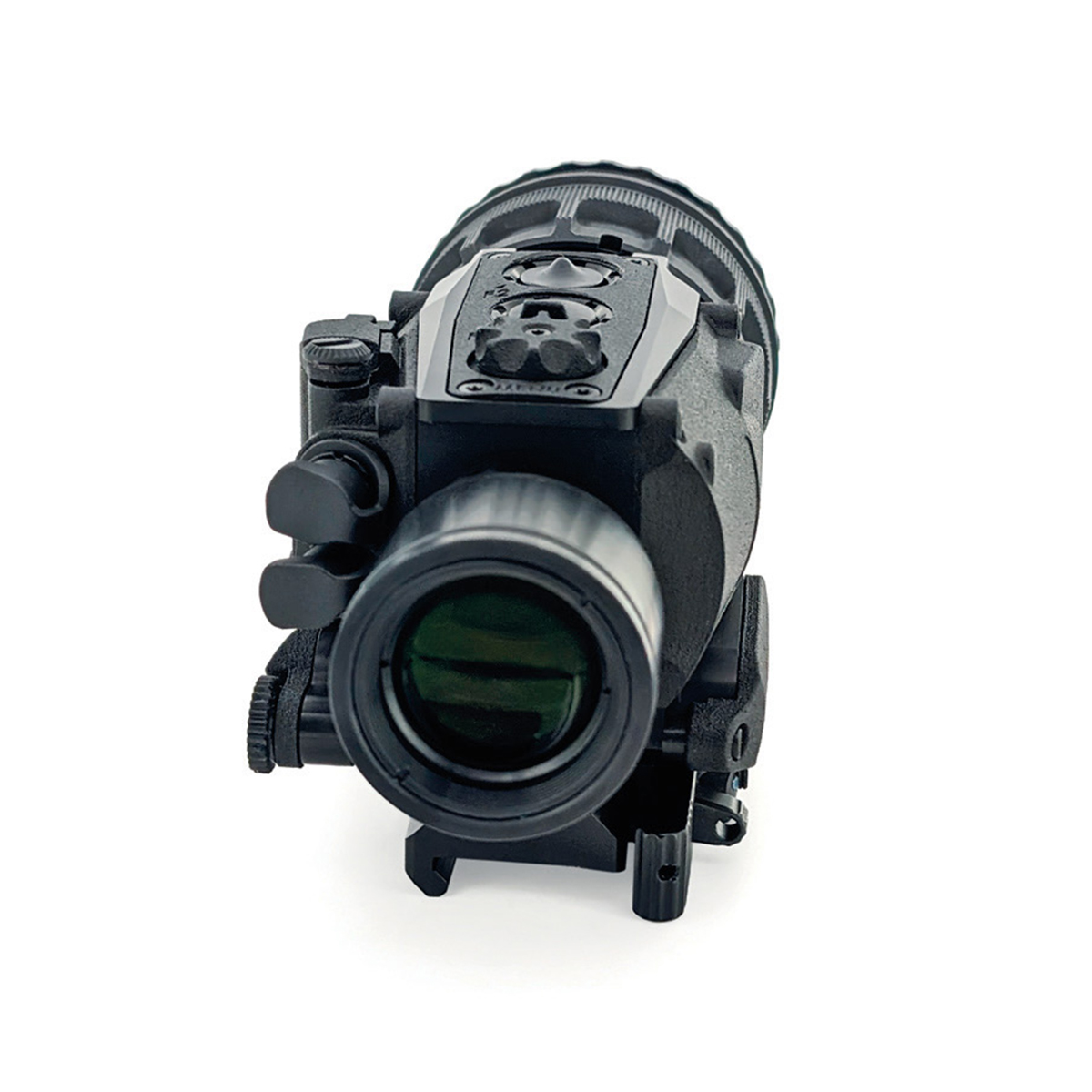

Brolis HTR-5G Thermal Aiming Sight

Call for price

SKU: LW75-LWIR-1 Categories: , Tag:

The BROLIS HTR-5G represents the next generation in rugged, uncooled thermal weapon sights, building upon the success of the battle-proven LW75MG by BROLIS. Utilizing the advanced BROLIS thermal core, the HTR-SG maintains ultra-high sensi­tivity and DRI (Detection, Recognition, Identification) performance while offering a 30% improvement in Size, Weight, and Power (SWAP) with additional functionality. This system is engineered as stand-alone aiming sight but can also function as a portable reconnaissance system. Offering versatility, the HTR-5G accommodates multiple power options, including internal AA batteries, external 12 V, or 5 V USB power banks. Users have the flexibility of recording video onto an SD card and can choose between analog or UVC digital video outputs via USB-C connector. Further­more, the HTR-5G integrates advanced sensorics, featuring eCompass, inclination, and level sensors for enhanced situational awareness.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Specifications

OPTICAL PROPERTIES
OPTICAL PROPERTIES
Detector
640 x 480 12 µm VOx microbolometer
Spectral Range
7-14 µm (LWIR)
FOV
8° (H) X 6° (V)
Detector NETD
<40 mK*
Frame Rate
60 Hz
Calibration
Auto / Semi-Auto / Manual
Magnification
Greater than or equal to 2.5
Digital Zoom
1x, 2x, 4x
Human target (1.7 m) detection / recognition
>3.5 / 1.2 km**
NATO target detection (2.3 m) / recognition
>5 / 1.6 km**
*Customized, lower NETDs available
**Per STANAG 4347: good transmission; detection - 1 LP; recognition - 3 LPs
*Customized, lower NETDs available
**Per STANAG 4347: good transmission; detection - 1 LP; recognition - 3 LPs
ELECTRICAL PROPERTIES
ELECTRICAL PROPERTIES
Internal power supply
3 x AA battery
Run time
>4 h (using lithium batteries at room temperature)
External Power Supply
12-24 V
External Power Supply via USB
5 V (USB-C)
Internal Sensors
eCompass, level and inclination
Memory Interface
SD Card with video capture
MECHANICAL PROPERTIES
MECHANICAL PROPERTIES
Length, width, height (max)
180 x 70 x 80 mm
Weight (with accessories and batteries)
<700 g***
Mounting interface
MIL-STD-1913 Rail (Picatinny Rail) / NATO STANAG 4694
Connectors
Analog video output
Remote control pad/external power
USB-C power and video output
SD card slot
***Product weights may vary due to manufacturing and configuration processes.
***Product weights may vary due to manufacturing and configuration processes.
ENVIRONMENTAL PROPERTIES
ENVIRONMENTAL PROPERTIES
Operational temperature
-40 °C to +50 °C
Storage temperature
-50 °C to +72 °C
IP Rating
Manufactured to IP68

Specifications subject to change without notice. All night vision products and accessories are controlled under export laws with guidance from International Traffic in Arms (ITAR). By purchasing equipment from Night Vision Devices, you understand that these products cannot leave the country without a valid US Dept of State License.
