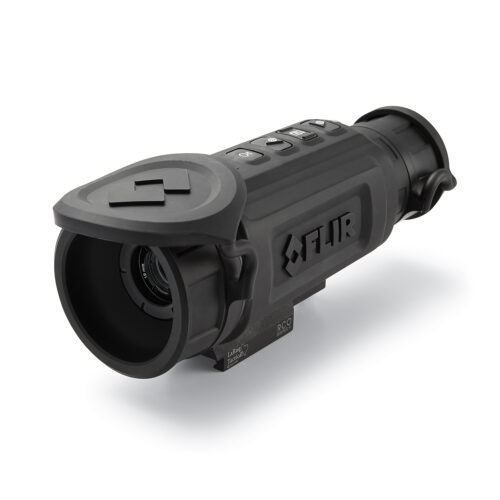

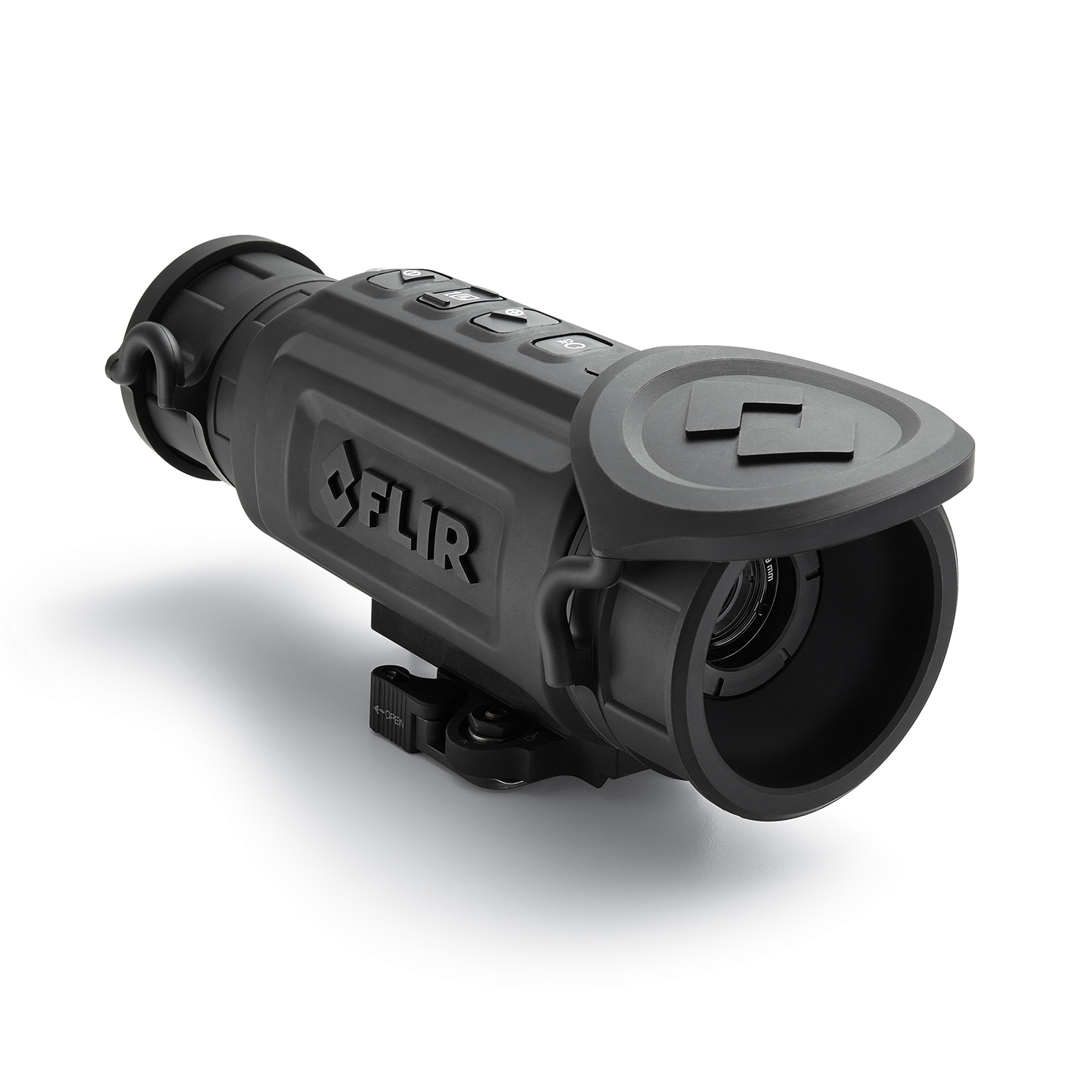

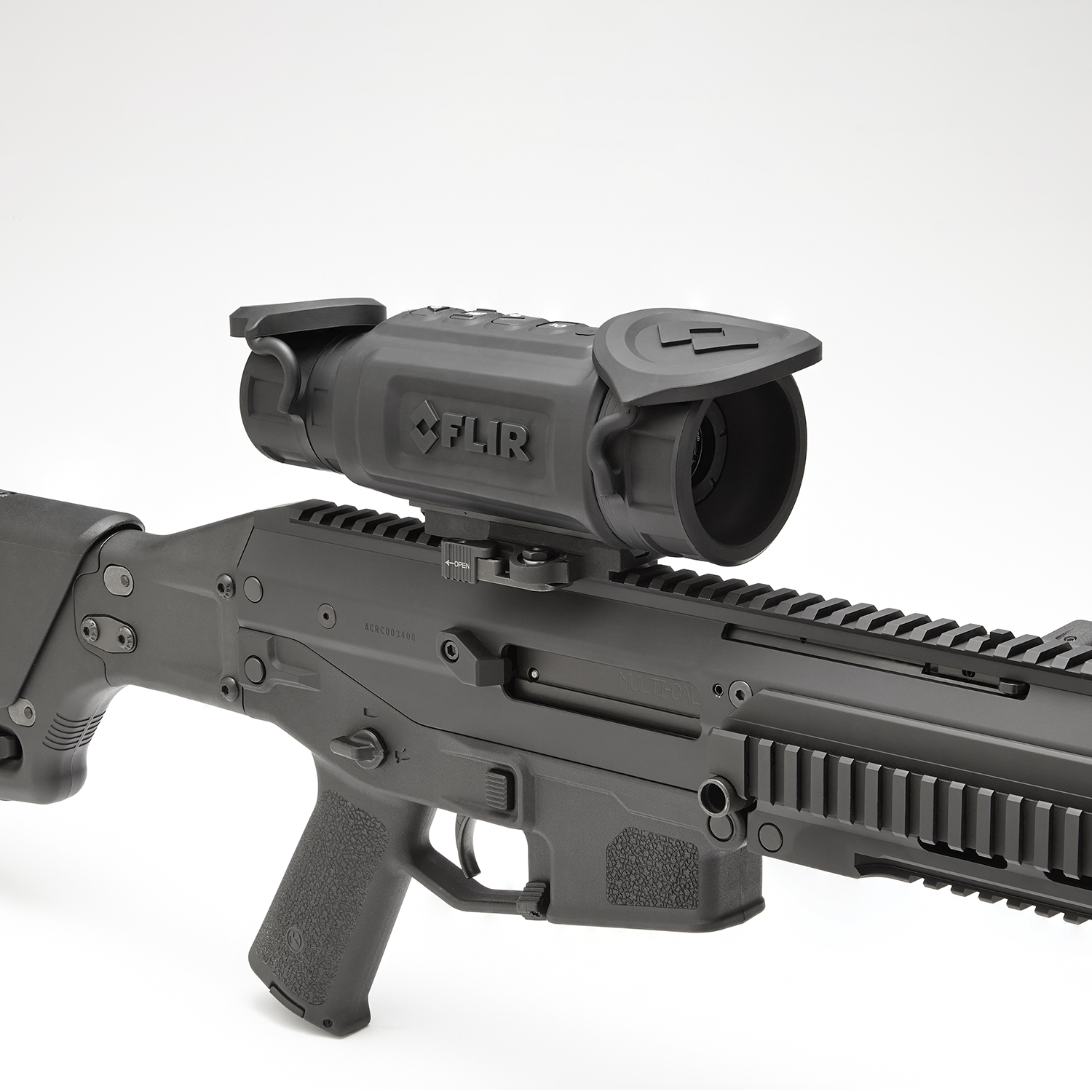

FLIR ThermoSight R-Series Thermal Weapon Sight

$2,000.00$4,500.00

IN STOCK, READY TO SHIP! Limited supply.

Clear

Please take note of the lead time for your system selection. Your card will be charged immediately upon order processing.

*Orders are processed in the order they are received unless they fall under Title 1 of the Defense Production Act (DPA) of 1950. In this event NVD shall make its best effort to advise of any delay in delivery.

SKU: N/A Categories: , ,

These FLIR® ThermoSight® R-Series Thermal Weapon Sights are new in the original packaging and sold as is, see FLIR for warranty.

The FLIR® ThermoSight® R-Series Thermal Weapon Sight is a compact, easy-to-use system that delivers rock-solid thermal imaging in zero light. This system is the ideal system because it detects heat energy, instead of visible light. Day or night, the body heat of animals will stand out against cooler backgrounds when seen through the R-Series scope.

The R-Series is built to perform under extreme conditions. This system combines outstanding image quality with an easy-to-use design. The scope optimizes images automatically using FLIR’s own advanced image correction technology. And large, glove-friendly buttons - combined with a simple menu interface - give you access to every key setting in three clicks, or less.

Accessories

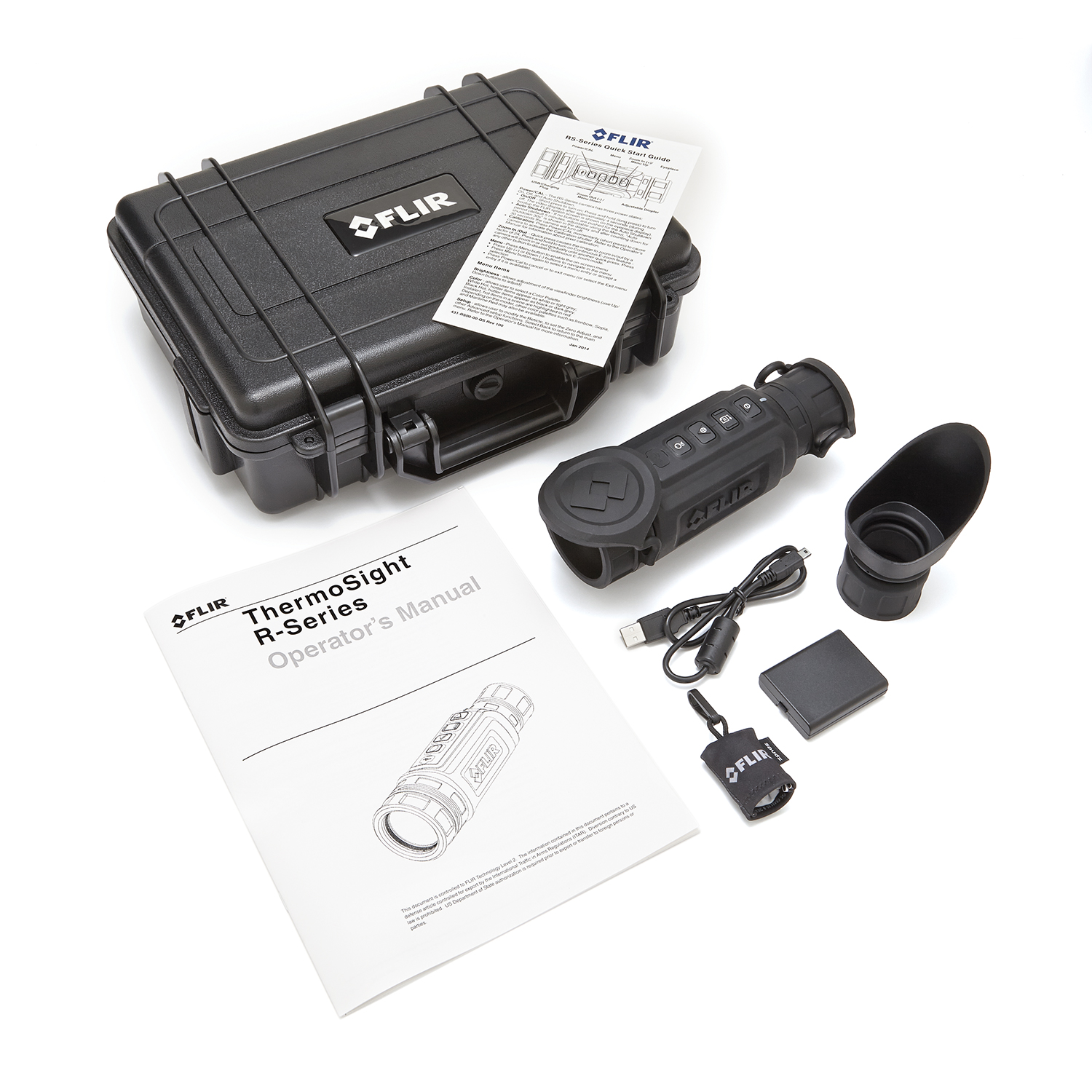

ThermoSight R-Series, LaRue Mount, USB Charging Cable, USB Video Cable (Not with RS-24), Hard Case, Eyecup, Lens Caps, Lens Cleaner, AC Wall Charger, Quick Start Guide and User Manual.

Specifications

Model
Part Number
RS-24 (1X)
431-0017-01-00
RS-32 (1.25-5X)
431-0017-02-00
RS-64 (1.1-9X)
431-0017-05-00
RS-64 (2-16X)
431-0017-06-00
Model
Resolution (VOx)
RS-24 (1X)
240 x 180
RS-32 (1.25-5X)
320 x 240
RS-64 (1.1-9X)
640 x 480
RS-64 (2-16X)
640 x 480
Model
Frame Rate
RS-24 (1X)
30 Hz
RS-32 (1.25-5X)
60 Hz
RS-64 (1.1-9X)
30 Hz
RS-64 (2-16X)
30 Hz
Model
Lens Focal Length
RS-24 (1X)
13mm
RS-32 (1.25-5X)
19mm
RS-64 (1.1-9X)
35mm
RS-64 (2-16X)
60mm
Model
Lens HFOV
RS-24 (1X)
20°
RS-32 (1.25-5X)
16°
RS-64 (1.1-9X)
18°
RS-64 (2-16X)
10°
Model
Focus
RS-24 (1X)
Fixed
RS-32 (1.25-5X)
Fixed
RS-64 (1.1-9X)
Fixed
RS-64 (2-16X)
Manual
Model
Video Out
RS-24 (1X)
No
RS-32 (1.25-5X)
Yes
RS-64 (1.1-9X)
Yes
RS-64 (2-16X)
Yes
Model
Weight
RS-24 (1X)
<1.8lb
RS-32 (1.25-5X)
<1.8lb
RS-64 (1.1-9X)
<1.8lb
RS-64 (2-16X)
<2.4lb
Model
Electronic Zoom
RS-24 (1X)
N/A
RS-32 (1.25-5X)
Up to 4X
RS-64 (1.1-9X)
Up to 8X
RS-64 (2-16X)
Up to 8X
Model
Color Pallets
RS-24 (1X)
Black / White /InstAlert™
RS-32 (1.25-5X)
Black / White / Sepia / Iron / Red / InstAlert™
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Display
RS-24 (1X)
Active Matrix LCD
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Display Resolution
RS-24 (1X)
640 x 480
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Eye Relief
RS-24 (1X)
3 inches
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Dimensions
RS-24 (1X)
8” X 3.3” X 2.9”
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Reticles
RS-24 (1X)
Duplex, Fine Duplex, German
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Reticle Colors
RS-24 (1X)
Black / White / Red / Green
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Diopter Adjustment
RS-24 (1X)
+/-6
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Operating Temperature
RS-24 (1X)
-4° to 122° F (-20° to 50° C)
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Storage Temperature
RS-24 (1X)
-40° to 140° F (-40° to 60° C)
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Ingress Protection
RS-24 (1X)
IPX7, Submersible 1m for 30 min
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Weapon Interface
RS-24 (1X)
MIL-STD-1913 Picatinny Rail
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Battery Life
RS-24 (1X)
4 hrs of use
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Battery Type
RS-24 (1X)
Internal Li-Ion
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Battery Charging
RS-24 (1X)
Standard USB interface with included wall charger
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
User Interface
RS-24 (1X)
Simple four-button interface
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
On Screen Symbology
RS-24 (1X)
Battery charge, E-zoom state
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Weapon Compatibility
RS-24 (1X)
MSR semi-automatic up to .30 Cal.
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)
Model
Export Controlled
RS-24 (1X)
Yes
RS-32 (1.25-5X)
RS-64 (1.1-9X)
RS-64 (2-16X)

Specifications subject to change without notice. All night vision products and accessories are controlled under export laws with guidance from International Traffic in Arms (ITAR). By purchasing equipment from Night Vision Devices, you understand that these products cannot leave the country without a valid US Dept of State License.
