Call for price

Please take note of the lead time for your system selection. Your card will be charged immediately upon order processing.

*Orders are processed in the order they are received unless they fall under Title 1 of the Defense Production Act (DPA) of 1950. In this event NVD shall make its best effort to advise of any delay in delivery.

SKU: 9510 Categories: ,

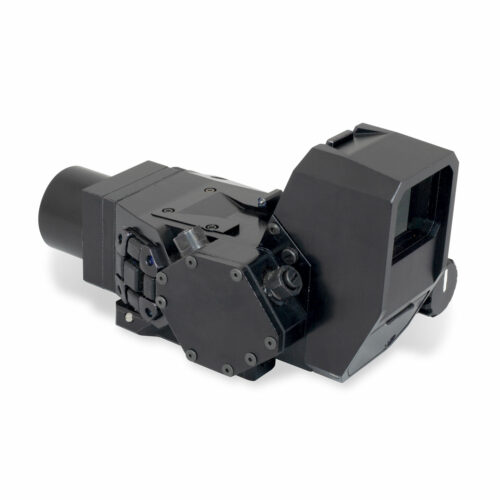

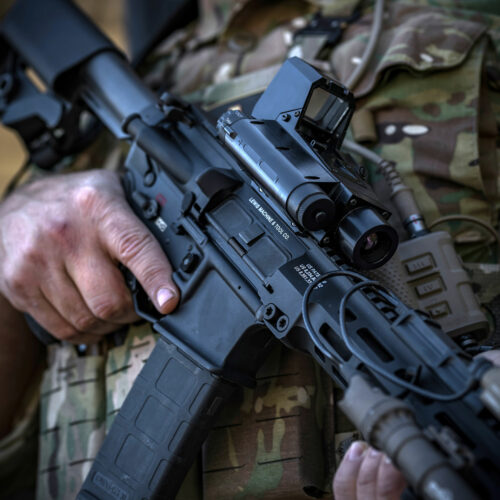

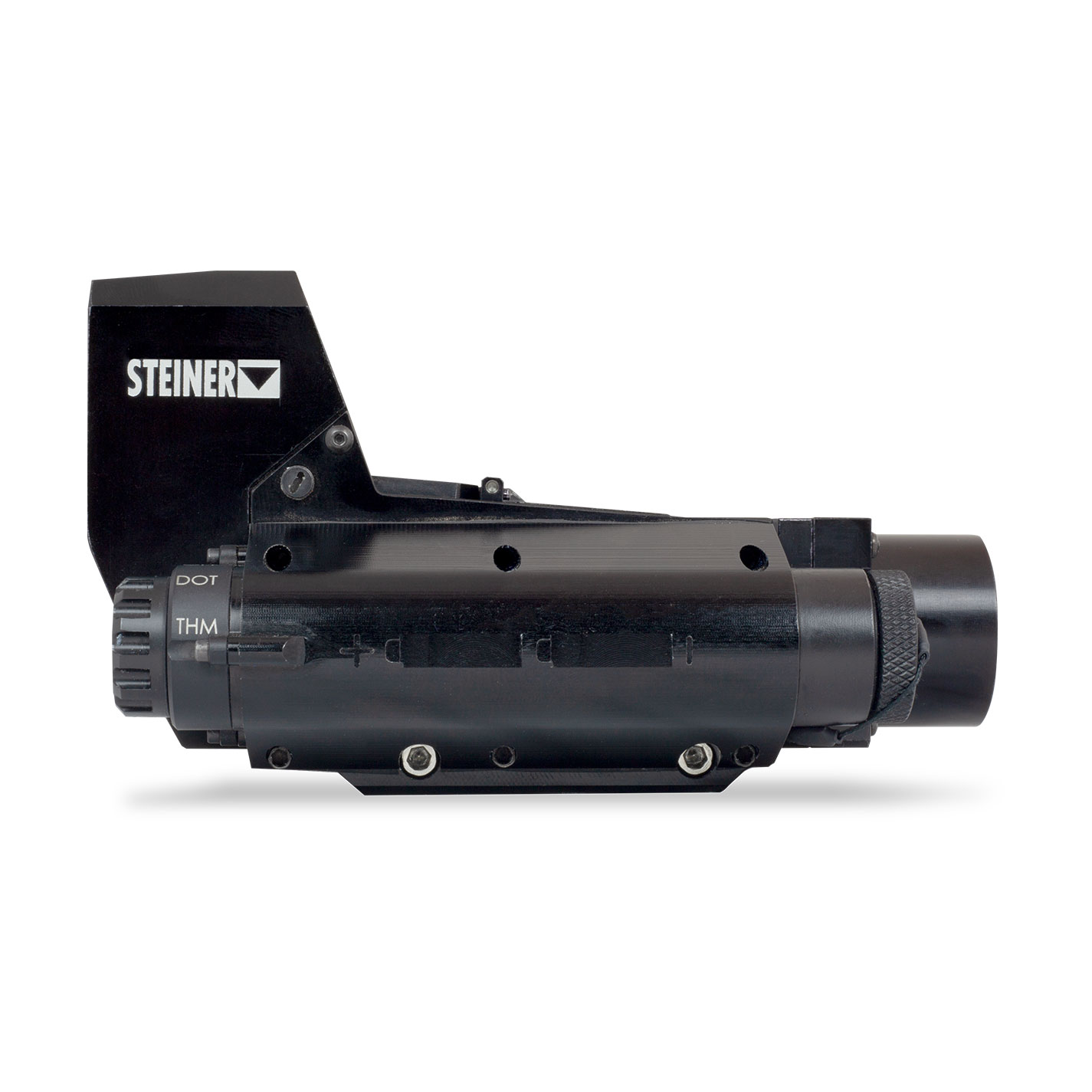

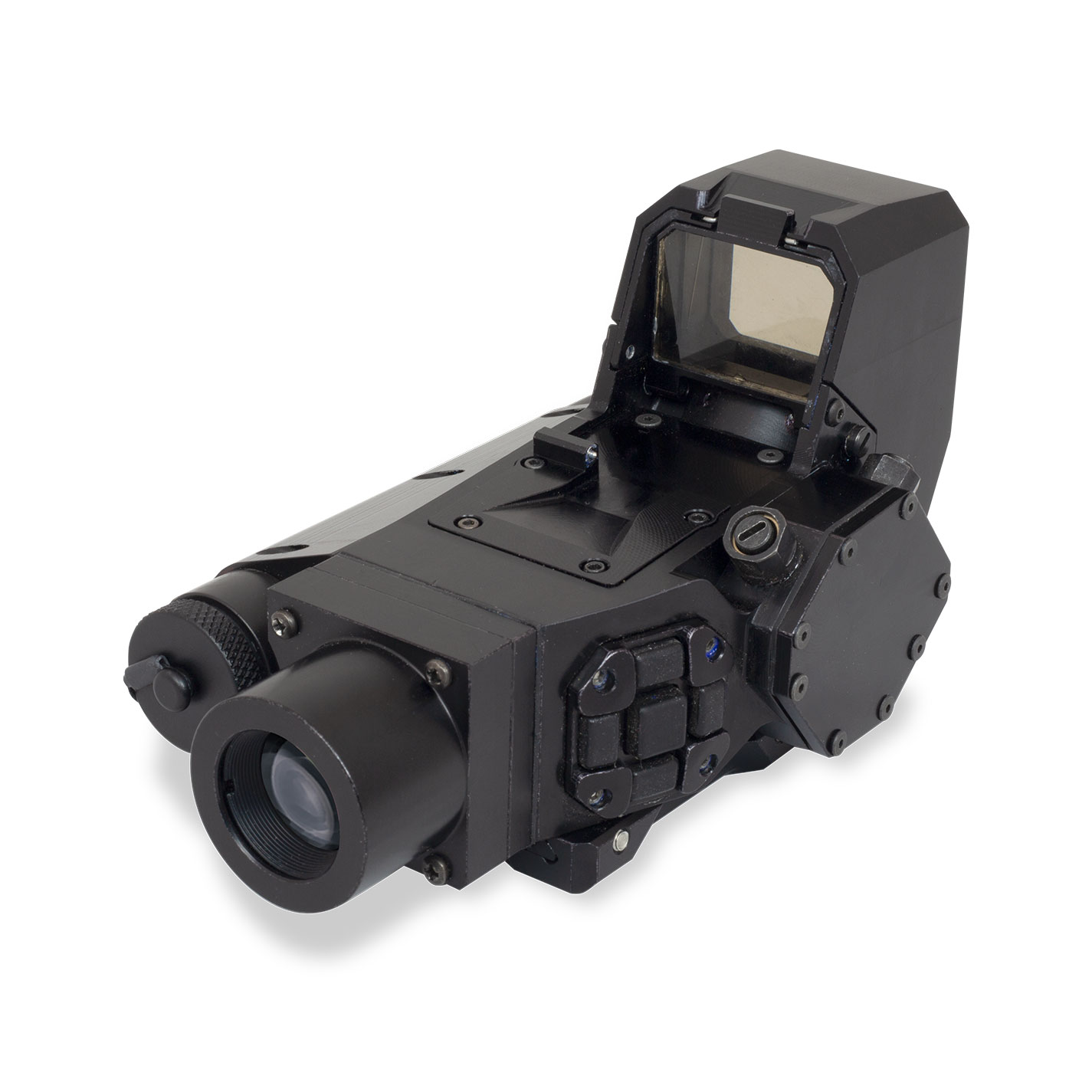

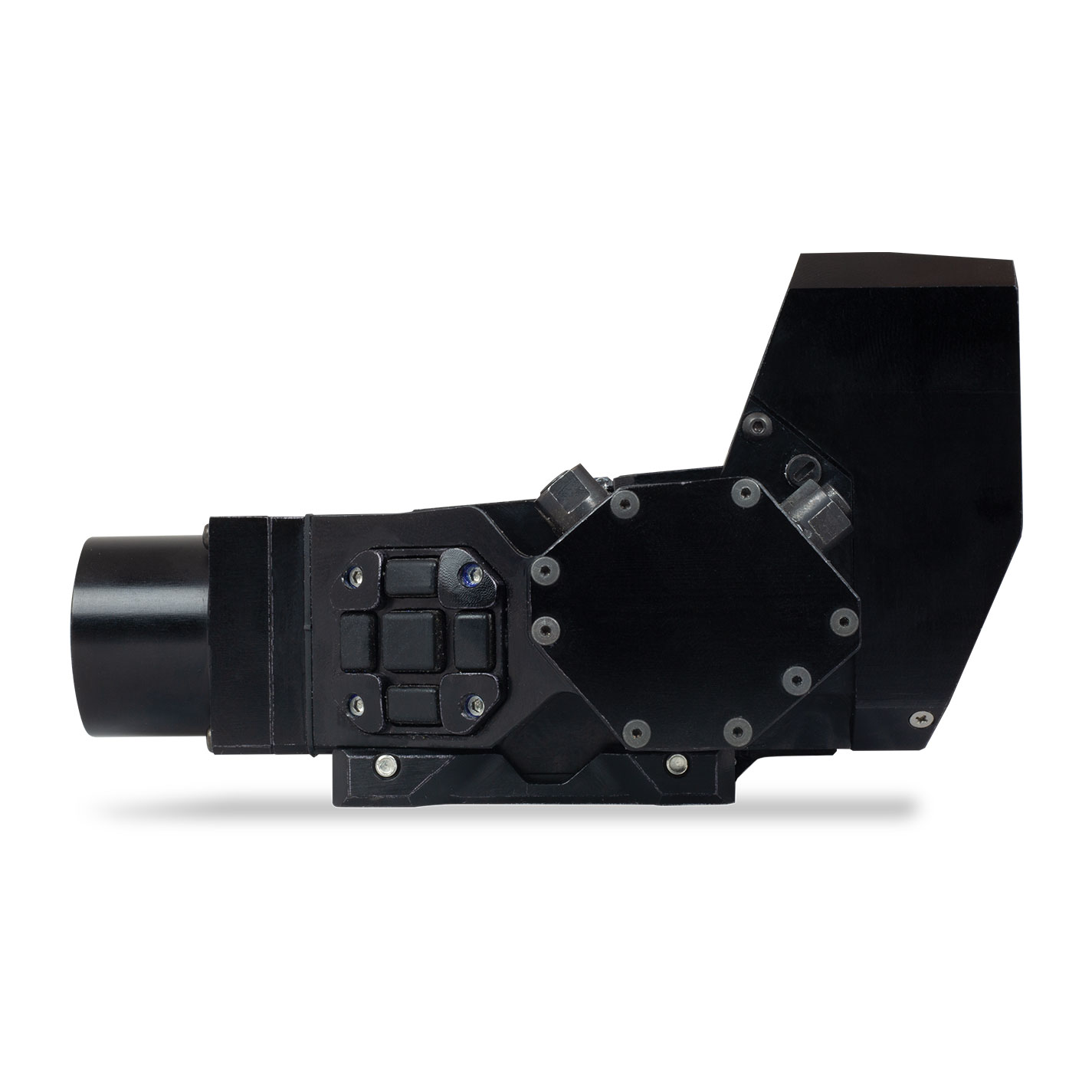

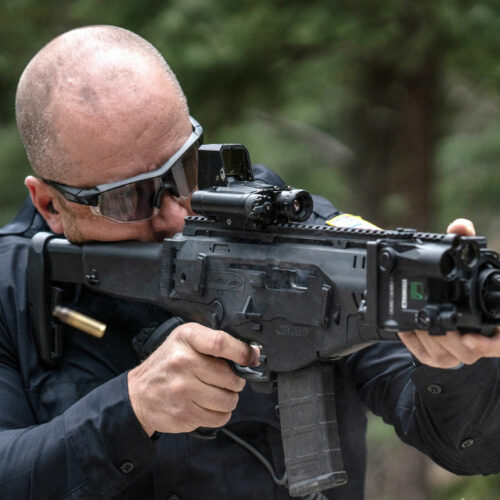

The Steiner EOptics CQT Close Quarters Thermal Sight is the first clear view thermal (CVT™) sight in the world. It combines red dot weapon sight with see-through thermal image overlaid onto a direct view scene. The CQT helps you quickly identify and engage targets and is ideal for situational awareness. There’s no need for separate night vision devices in CQB or other close-range engagements.

Specifications

Warranty
2 Years
DETECTOR
DETECTOR
Detector Type
320 x 240 pixels @12 um
uncooled VOx microbolometer
Spectral Band
Long wave infrared 8-14 um
NETD
60 mK
OPTICAL CHARACTERISTICS
OPTICAL CHARACTERISTICS
Objective Diameter
18 mm, 1x optical magnification
Focusable
Factory focused: effective at ranges from 5 m to infinity
IR Laser Illuminator
<4.0 mW
Eye Relief
90 mm @12° Thermal HOV, fixed diopter
Field of View
12.2° (H) x 9.7° (V)
Eyepiece Size
32 mm x 23 mm
DISPLAY
DISPLAY
Microdisplay
High brightness green OLED, SVGA (800 x 600)
IMAGING
IMAGING
Frame Rate
60 Hz
Digital Zoom
1-4x

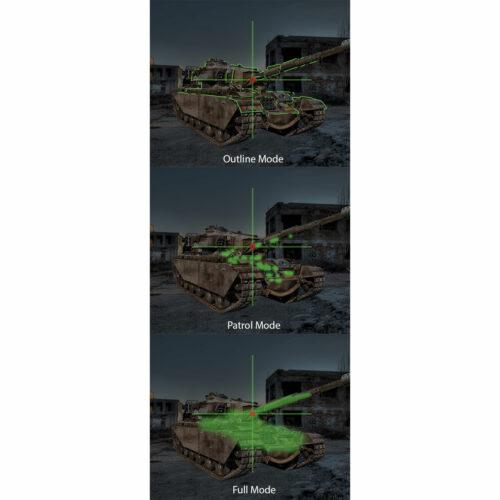

Thermal Modes
Full, Patrol, Outline, Off
Digital Reticle
Crosshair, Crosshair + Dot, Crosshair + Circle, Dot, Box Dot, None
Aiming Point
2.5 MOA red dot, separately zeroed
POWER SUPPLY
POWER SUPPLY
Battery Type
(2) CR123A batteries
Battery Operating Time
(max. brightness)
Thermal run time: 8 hours
Red dot run time: >1000 hours
ENVIRONMENTAL
ENVIRONMENTAL
Operating Temperatures
-40°C to +70°C
Shock
MIL-STD 810G
Immersion
20 m for 2 hours
PHYSICAL CHARACTERISTICS
PHYSICAL CHARACTERISTICS
Weight (with batteries)
590 g
Size
135 mm x 78 mm x 78 mm
pdf-icon1Product Data Sheet

Specifications subject to change without notice. All night vision products and accessories are controlled under export laws with guidance from International Traffic in Arms (ITAR). By purchasing equipment from Night Vision Devices, you understand that these products cannot leave the country without a valid US Dept of State License.
