UL BNVD Ultra Light Night Vision Binocular – No Gain

$6,550.00$8,395.00

Clear
$0.00
  • Options Price: $0.00
  • Product Price: $6,550.00
  • Total: $0.00

Please take note of the lead time for your system selection. Your card will be charged immediately upon order processing.

*Orders are processed in the order they are received unless they fall under Title 1 of the Defense Production Act (DPA) of 1950. In this event NVD shall make its best effort to advise of any delay in delivery.

SKU: NVD-UL-BNVD Categories: , Tag:

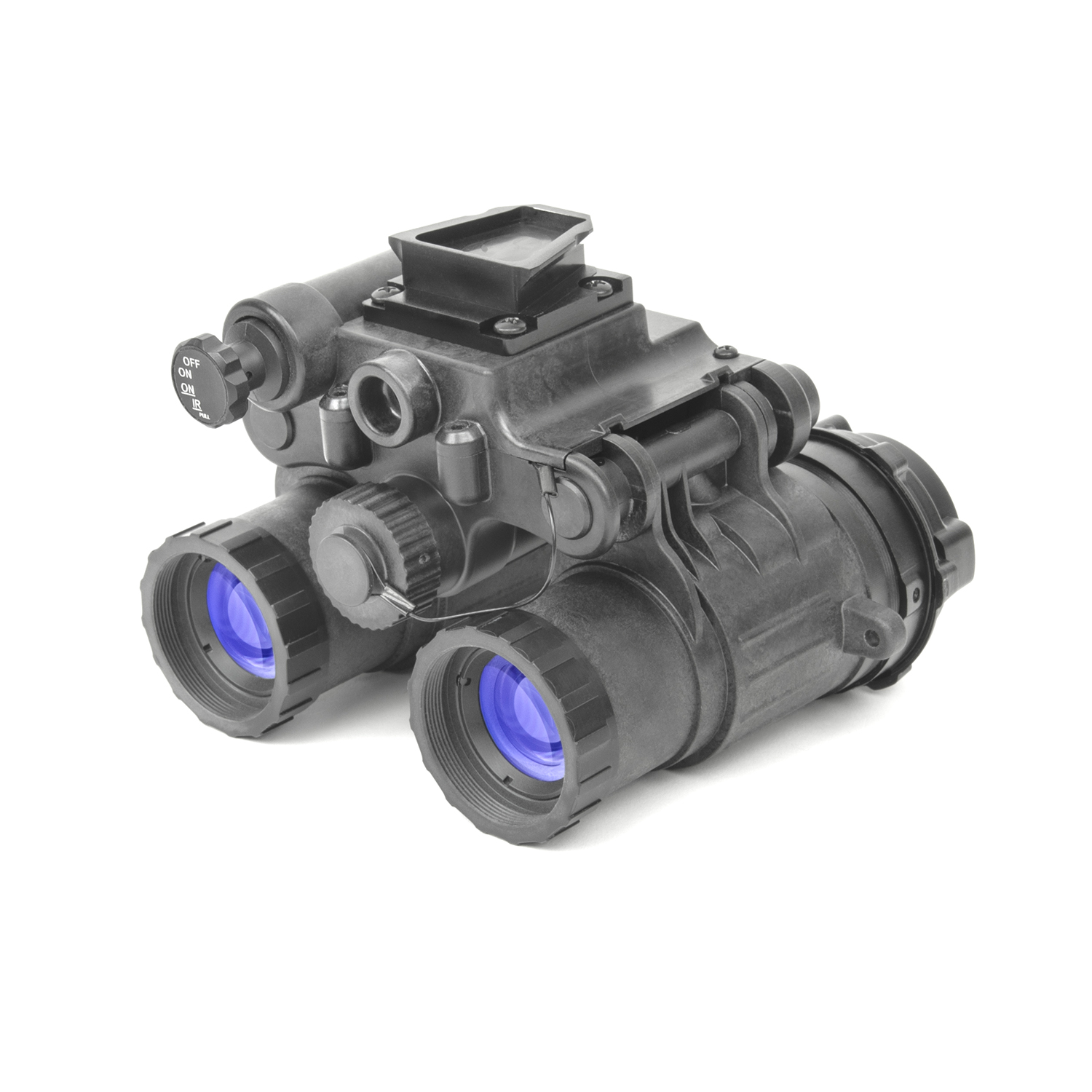

At only 460 Grams, the UL BNVD, ultra light dual tube goggle incorporates new high performance optics that are not only much lighter, but also offer higher performance than standard optics. Currently the AN/PVS-14 and most other night vision systems, use optics which were only designed for green (P43) phosphor image tubes. However these new BNVD optics were designed specifically to be optimized for both White (P45) and Green (P43) image tubes.

The UL BNVD includes features not found in other dual tube goggle designs in this weight class. These features include: EMI compatibility, Full Diopter Adjustment Range (-6 to +2), Infrared LED, and most importantly: a close focus range of 9.8 inches. This is critical when trying to read maps or do close up work such as clearing a weapons jam.

The UL BNVD features a “Tactical Monocular Cutoff”, which turns off power to each channel of the binocular whenever a channel is rotated up out of the users’ line of sight. This eliminates stray light emitting from the monocular eyepiece, which would reveal the user to anyone else on the battlefield. The UL BNVD has an automatic system power cutoff whenever the UL BNVD is flipped up into the helmet mounted stow position, and then powers back on when it is flipped back down. This feature can also be turned off via a four position ON/OFF switch. The UL BNVD is submersible to 66 feet (20 meters) for up to 3 hours. The UL BNVD is available with an optional battery pack, which holds 3 “AA” Alkaline batteries for run times exceeding 50 hours.

The UL BNVD can be used with optional 3X Afocal Magnifiers. Each 3X Magnifier can be either slide onto each objective lens or screw into the threads on the objective lenses. For extended use, it is recommended to screw them on to prevent the lenses from falling off. These magnifiers transform the UL BNVD into a fixed 3X Magnification Binocular.

The optional external battery pack will only work with our Night Vision Devices manufactured binoculars with an external power port in order to extend the operating life of the system. If you would like to use this battery pack with this system, you must add the power port now when first assembled. The body cannot be modified afterwards. You may however, add the battery port now and purchase the battery pack at a later time.

With our expansive capabilities and strategic partnerships, we are able to custom build any of our NVD manufactured products with Image Intensifiers from either Elbit Systems of America®, Photonis® or L3Harris®. This includes green and white phosphor and thin or un-filmed image tubes. Like all other NVD products, the UL BNVD also features our best in the business, 10 year warranty.

Accessories

Standard Accessories: Soft Carry Case, AA Batteries (2), Operators Manual, Neckcord, Retaining Lens Covers, Eyecups, Lens Paper, Demist Shields, Sacrificial Windows and IR Flood/Spot Lens Assembly, Operator's Card and Dovetail Mounting Adapter.

Optional Accessories: 3X Afocal Magnifier Lens, Helmet Mount, Shuttered Eyeguards, Camera Adapter Kit, Light Interference Filters (For DOD Only), and Battery pack for 50-60 hours of continual use for extended missions.

Specifications

Warranty

10 Years

Gain Control

None

IR Illuminator

Yes

Adjustable IR Spot/Flood

Yes

LED IR Indicator

Yes

LED Low Battery Indicator

Yes

Tactical Monocular Cutoff

Yes

Flip Up, Turn Off Setting

Yes

Field of View

40°

Magnification

One Power (1X)

Diopter Adjustment

-6 to +2 Diopters

Interpupillary Adjustment

51mm to 76mm

Eye Relief

25mm

Submersible

66 feet for 3 hours

Focus Range

9.8" to Infinity

Power Source

1 AA-Size Battery

Operation Time

20+ hours (Alkaline), 40+ hours (Lithium)

Weight (w/o batteries)

460 g (16.2 oz)

Size

4.3"L x 4.2"W x 3.3"H

Specifications subject to change without notice. All night vision products and accessories are controlled under export laws with guidance from International Traffic in Arms (ITAR). By purchasing equipment from Night Vision Devices, you understand that these products cannot leave the country without a valid US Dept of State License.
